SEELab|ExpEYES17 Your Lab@Home

Features SEELab|ExpEYES17 Your Lab@Home

Compatible with SEELab3 & ExpEYES17 devices.

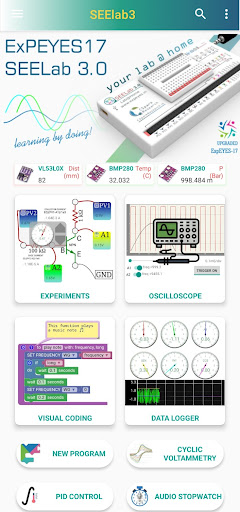

Requires an OTG adapter to connect these to your phone.https://csparkresearch.in/expeyes17https://csparkresearch.in/seelab3https://expeyes.inThis is a companion app for a feature packed modular hardware(SEELab3 or ExpEYES17) that contain a host of test and measurement tools ranging from a 4 channel Oscilloscope, RC Meter, and frequency counters, to communication buses which read data from a multitude of sensors pertaining to physical parameters such as luminosity , magnetism, motion etc.

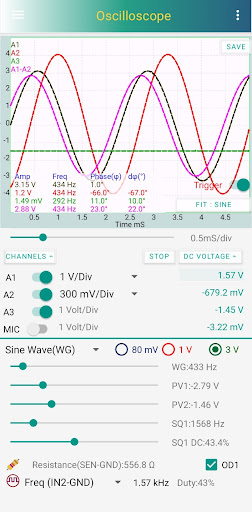

It is very handy for designing science and technology experiments and demonstrations, and a fantastic troubleshooting companion for your Arduino/Microcontroller projects.+ A tool for learning science by exploring and experimenting.+ 100+ documented experiments and easy to add more.+ 4 channel Oscilloscope, 1Msps .
Programmable voltage ranges [ 2 Channels +/-16V , 1 Channel +/-3.3V , 1 Microphone channel ]+ Sine/Triangular Wave Generator, 5Hz to 5kHz+ Programmable voltage sources, +/5V and +/-3.3V+ Frequency Counter and time measurements.
15nS resolution.
Up to 8MHz+ Resistance (100Ohm to 100K) , Capacitance(5pF to 100uF)+ Supports I2C and SPI modules/Sensors+ 12-bit analog resolution.+ Open Hardware and Free Software.+ Software in Python programming language for desktop/PC.+ Visual Programming Interface (Blockly) + Plot gravity, luminosity, rotation values + Embedded AI camera for hand tracking, pose estimation etc+ Record data from phone sensors + Acoustic stopwatch based on phones mic + Log gravity, luminosity, rotation valuesAdd-On modules with plug and play capabilityBMP280:Pressure/TemperatureADS1115: 4 channel, 16 bit ADCTCS34725: RGB Colour sensorMPU6050 : 6-DOF Accelerometer/GyroMPU9250: MPU6050+ AK8963 3 axis magnetometerMS5611: 24 bit atmospheric pressure sensorBME280: BMP280+ humidity sensorVL53L0X: distance measurement using lightML8511: UV light intensity analog sensorHMC5883L/QMC5883L/ADXL345 : 3 Axis MagnetometerAD8232: 3 electrode ECGPCA9685 : 16 Channel PWM generatorSR04 : Distance Echo ModuleAHT10: Humidity & Pressure sensorAD9833: 24 bit DDS waveform generator.
up to 2MHz , 0.014Hz step sizeMLX90614 : Passive IR Temperature sensorBH1750: Luminosity sensorCCS811: Environment monitoring .eCO2 and TVOC sensorMAX44009 : Visible spectrum intensity sensorMAX30100 : Heart rate and SPO2 meter[ non-medical use, only for general fitness/wellness purpose.
MAX30100 hardware module is required.

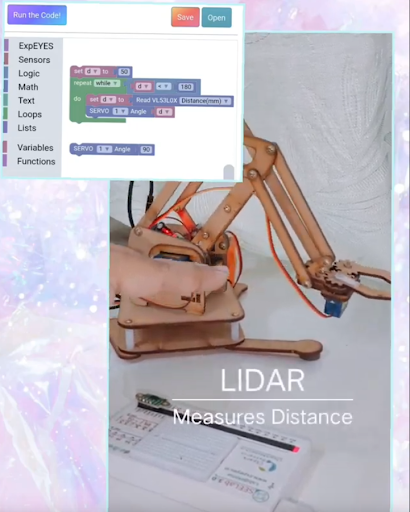

]Analog MultiplexersIts visual programming interface also allows reading information from the phones sensors as well as analysis of camera frames for object detection and motion studies.Some Example Experiments: - Transistor CE - EM Induction - RC,RL,RLC Transient and Steady State response - Velocity of sound with Phase shift tracking - Diode IV, clipping, clamping - opamp summing junction - Pressure Measurement - AC generator - AC-DC separating - Half wave rectifier - Full wave rectifier - Lemon cell, Series lemon cell - What is DC - Opamp Inverting, Non Inverting - 555 timer circuit - Time of flight due to gravity - Rod pendulum time measurements - Simple pendulum digitization - PID Controller - Cyclic Voltammetry - Magnetic Gradiometry
